Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

Name: Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber
Brand: Lianghe
Price: 8.5 USD

Best Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber wholesale

Brand Name : Lianghe

Model Number : KXT

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1 set

Price : $8.5-18.88 per set

Payment Terms : T/T, D/A, D/P, Western Union, L/C, MoneyGram

Supply Ability : 2000 per month

Delivery Time : 5-8 work days

Packaging Details : Inside: Plastic Film ，Outside: Wooden Case

Product name : Clamp Type Flexible Rubber Joint

Keyword : rubber flexible joint

Size : DN40-DN600

Clamp material : Carbon steel,Stainless steel etc.

Rubber material : NR,NBR,EPDM,etc.

Connectivity : Clamp

Overall Length : Customizable

Contact Now

Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

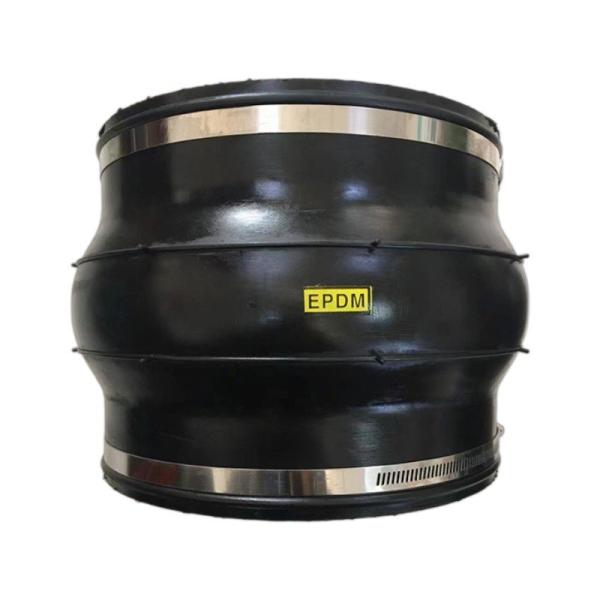

The clamp-type flexible rubber joint uses a reinforced stainless steel 304 clamp.
It is composed of a fabric-reinforced rubber sphere and a metal clamp, and is used for pipeline vibration isolation and noise reduction, and displacement compensation;
It is a pipeline joint with high elasticity, high air tightness, medium resistance and weather resistance.

Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

The DN50-DN600 KXT clamp-type flexible rubber joint uses a clamp instead of a flange and bolts.
When in use, the two ends of the clamp rubber joint can be
conveniently mounted on the pipe to be connected, and the rubber joint is fixedly connected to the pipe through a stainless steel clamp.
When disassembling, just loosen the clamp; thereby achieving the purpose of compensating for the displacement of the pipe caused by thermal expansion and contraction and water delivery.

Drawing of clamp rubber joint

Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

NO	Name	Material
1	Inner and outer rubber	Nature rubber ,EPDM rubber,NBR rubber
2	Body	Nylon cord fabric
3	Clamp	Crabon steel, Stainless steel 201,304

Flexible Rubber Expansion Joint Data Sheet

Nominal diameter		Length (mm)	Axial displacement(mm)		Horizontal displacement(mm)	Deflection angle
mm	inch	Length (mm)	Elongation	Compression	Horizontal displacement(mm)	Deflection angle
32	1 1/4	95	6	9	9	15°
40	1 1/2	95	6	10	9	15°
50	2	105	7	10	10	15°
65	2 1/2	115	7	13	11	15°
80	3	135	8	15	12	15°
100	4	150	10	19	13	15°
125	5	165	12	19	13	15°
150	6	180	12	20	14	15°
200	8	210	16	25	22	15°
250	10	230	16	25	22	15°
300	12	245	16	25	22	15°
350	14	255	16	25	22	15°
400	16	255	16	25	22	15°
450	18	255	16	25	22	15°
500	20	255	16	25	22	15°
600	24	260	16	25	22	15°

Features and advantages of clamp rubber joints

Good flexibility: adapt to complex displacement and vibration
Easy installation: the clamp design simplifies the installation steps, no welding or flange alignment is required
Corrosion resistance: rubber material can resist a variety of chemical media
Economical: the cost is lower than metal compensators, and the maintenance cost is low

Factory Pictures

Customized Acid Alkali High Temperature Resistant Clamp Type Flexible Rubber Joint Pipeline Shock Absorber

Installation steps of clamp joint
1. Clean the end of the pipe to ensure there are no burrs
2. Put the rubber joint on the pipe and adjust it to the appropriate position
3. Tighten it with a clamp to ensure uniform force (avoid leakage caused by over-tightening on one side)
